3’x 6’ or 4’x 5’ loop with a 20’ lead-in

3’x 6’ or 4’x 5’  loop with a 20’ lead-in

Uses

For saw-cut installations where a 3/16” or wider slot is cut into the concrete or asphalt and the loop wire is stuffed into the saw-cut slot and sealed with loop sealant.

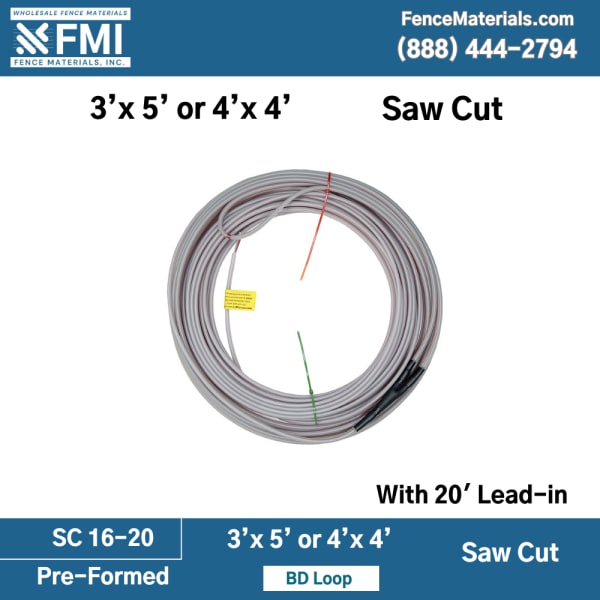

BD Loops Preformed Saw-Cut Inductance Loops are a complete loop with a set size loop and length of lead-in run. Our Saw-Cut Loops have an extra layer of protection: a durable outer jacket that protects and tightly binds the inner conductors. All BD Loops are made with 16 AWG copper wire and rated for direct burial use.

· Extra layer of protection—Thick and durable outer jacket protects both loop and lead-in.

· Each loop is tested 3 ways before it leaves the factory.

· Backer-rod is built into the wire! No need to use backer-rod if the loop is installed in a 3/16” saw-cut groove.

· Lead-in wires are tightly bound in an protective outer
jacket. Eliminating the need for twisting.

· Both loop and lead-in fit into a 3/16” wide saw-cut groove. No more double cutting the lead-in run!

· Loop fills up a larger percentage of the saw-cut groove, requires less loop sealant to seal the groove. (30-40% less sealant vs a ¹/₄” wide groove)

· Cuts don’t need to be exact! Any BD Loop can be made up to 4’ smaller. Be slightly conservative with your cuts and BD Loops Preformed Saw-Cut Loops will fit every time.

· Use the BD-LS flat 3/16″ sealant tip and seal the loop in just 1 pass. No more waiting around for the sealant to seep in and top off gaps. Make an attractive smooth and even seal.
